Siemens - Finding the SINUMERIK Operate OPC UA Version

Siemens - Finding the SINUMERIK Operate OPC UA Version

Press the ‘Machine’ button which is typically in the upper right corner.

or

Press the Diagnostics button which should be on the bottom or side of the screen


Or

Press the ‘Version’ button on the bottom of the screen

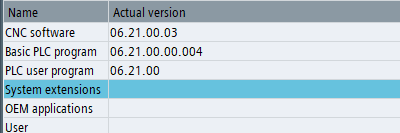

Highlight the ‘System extensions’ row in the list of items


Press the ‘Details’ button on the right side of the screen


Record or take a picture of the version number for ‘opcuas’
